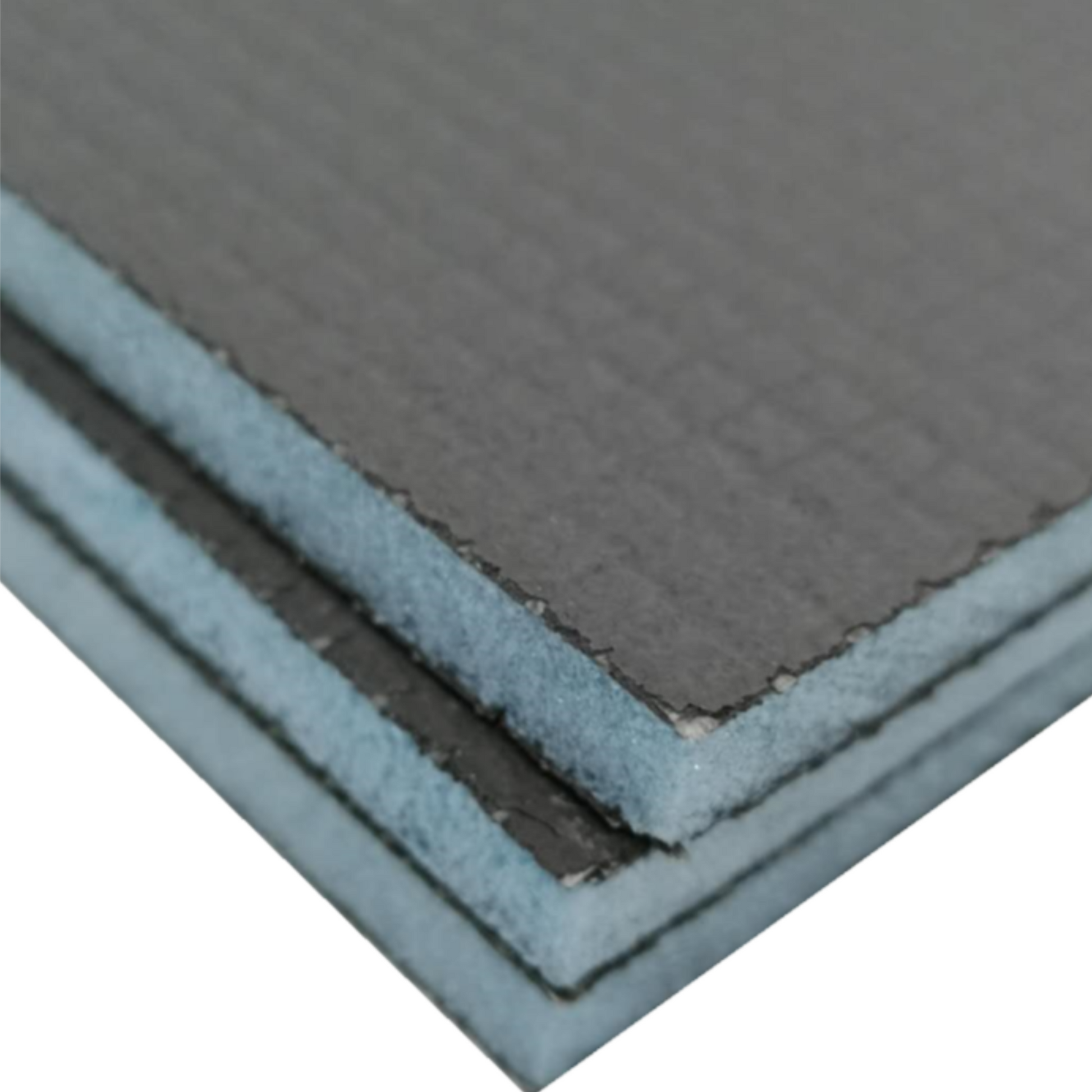

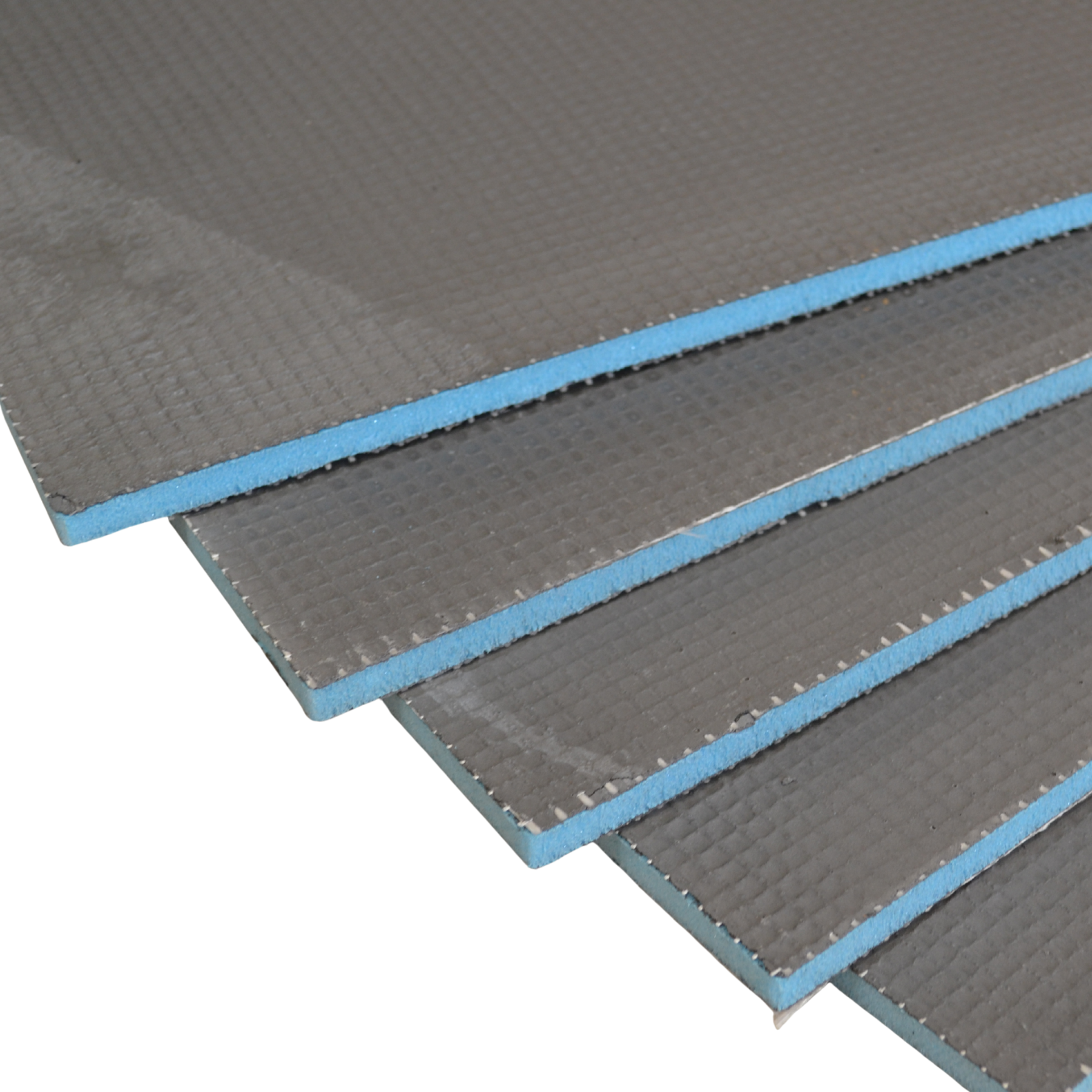

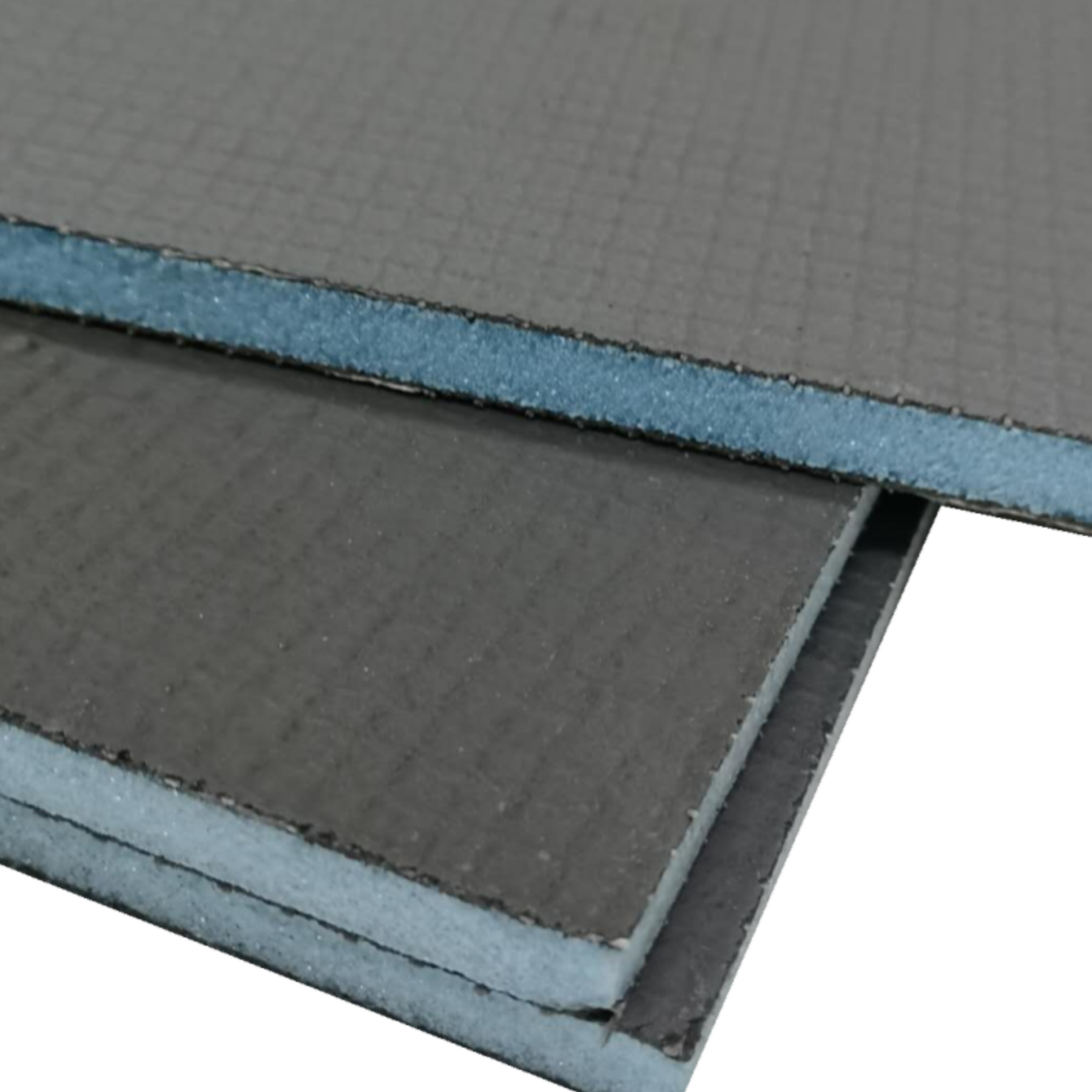

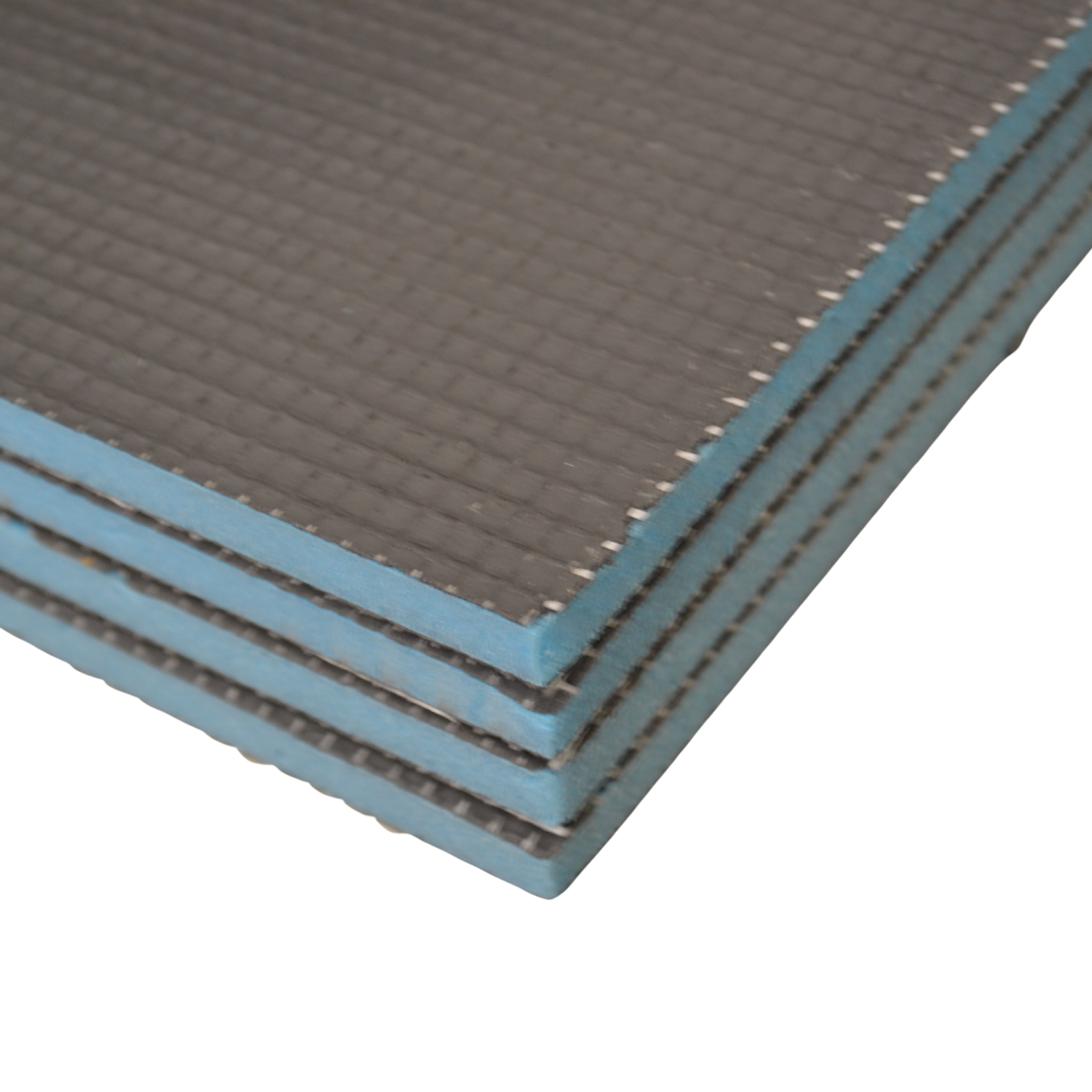

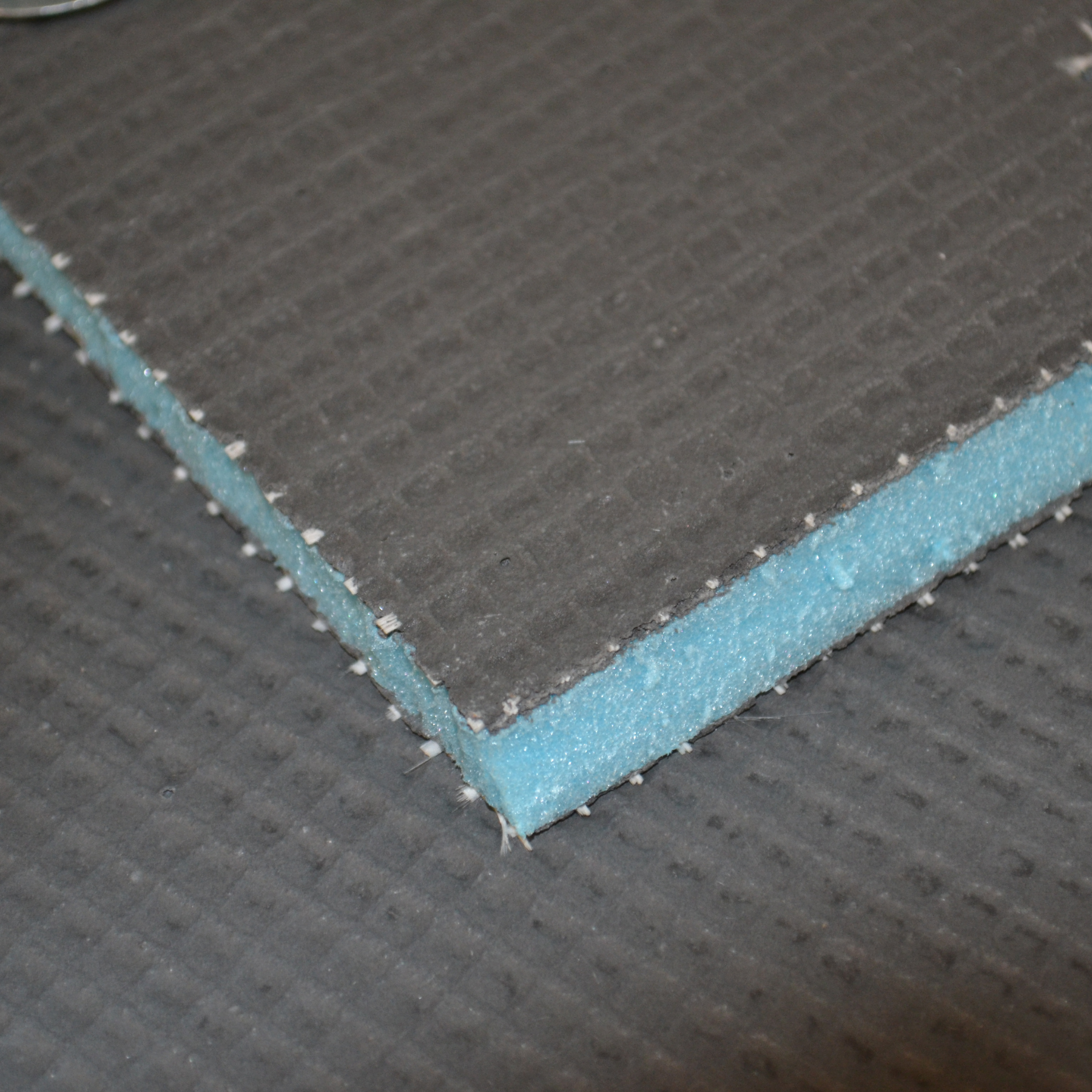

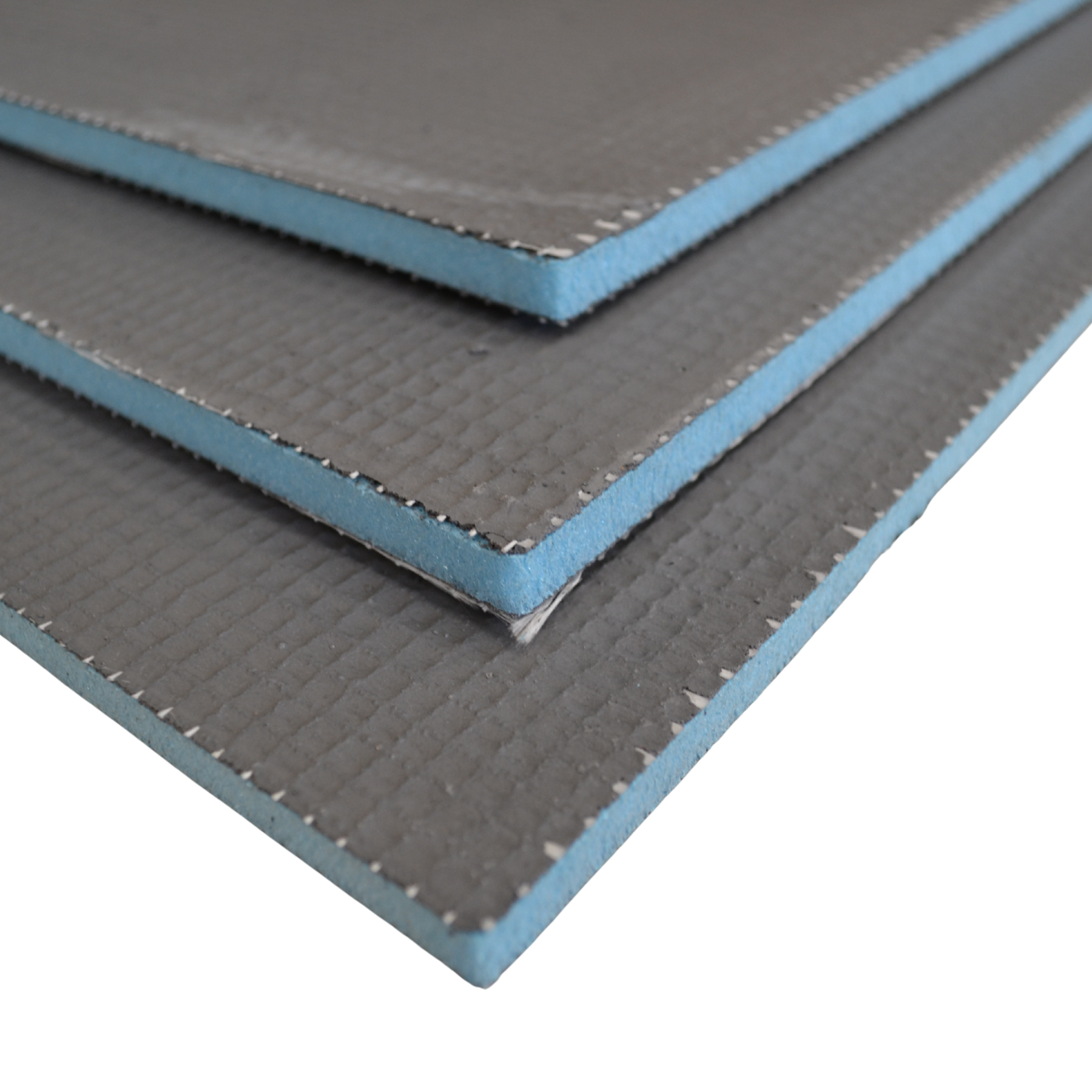

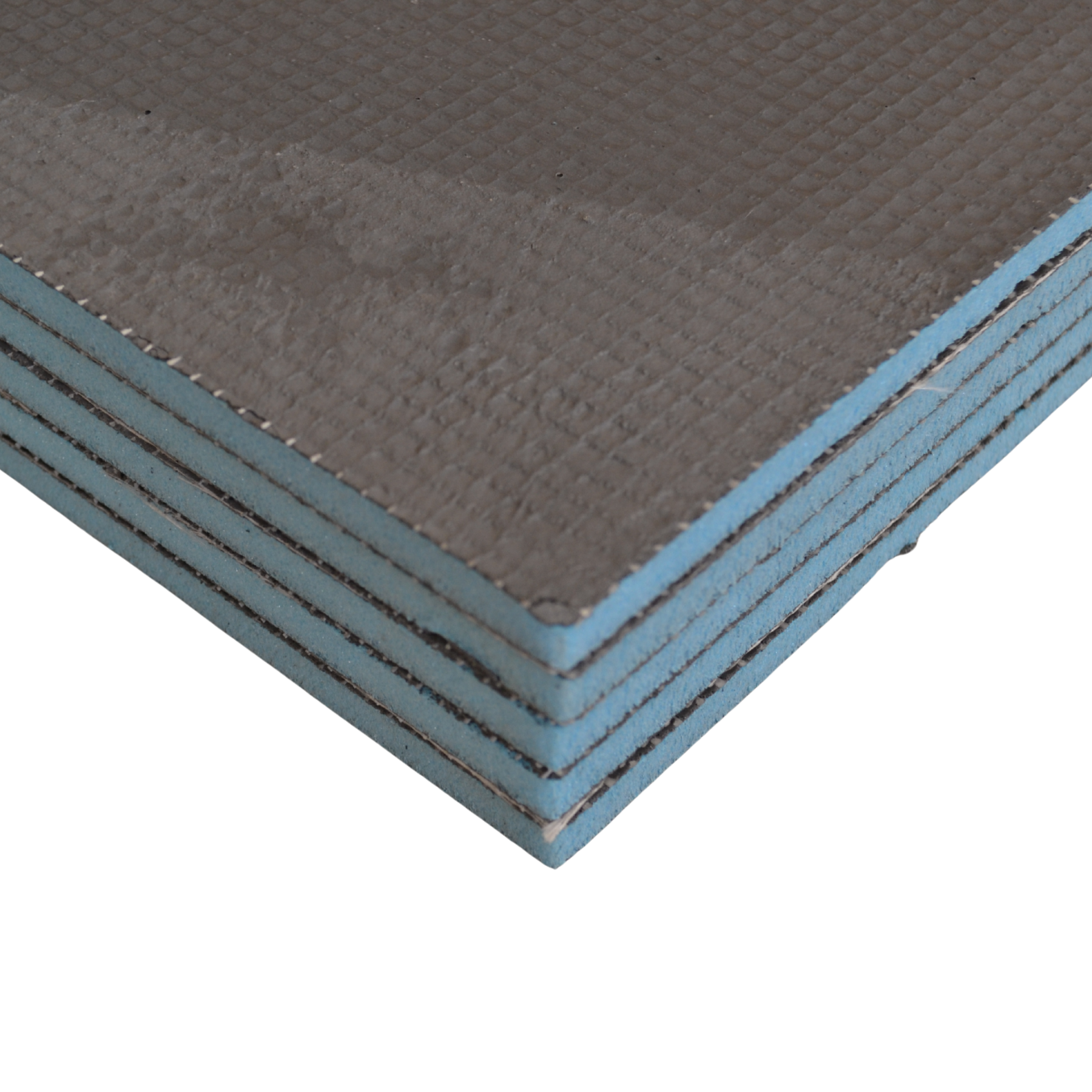

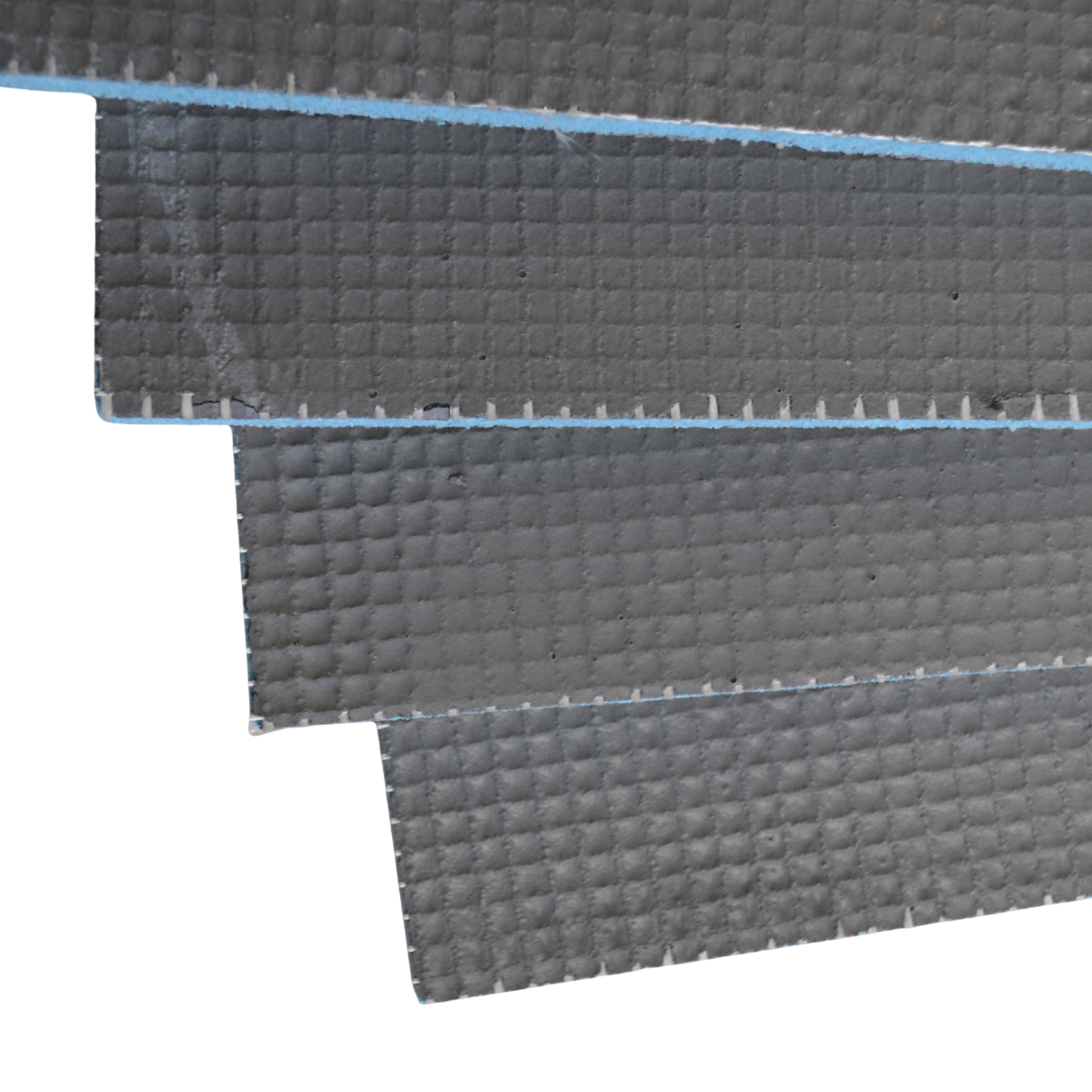

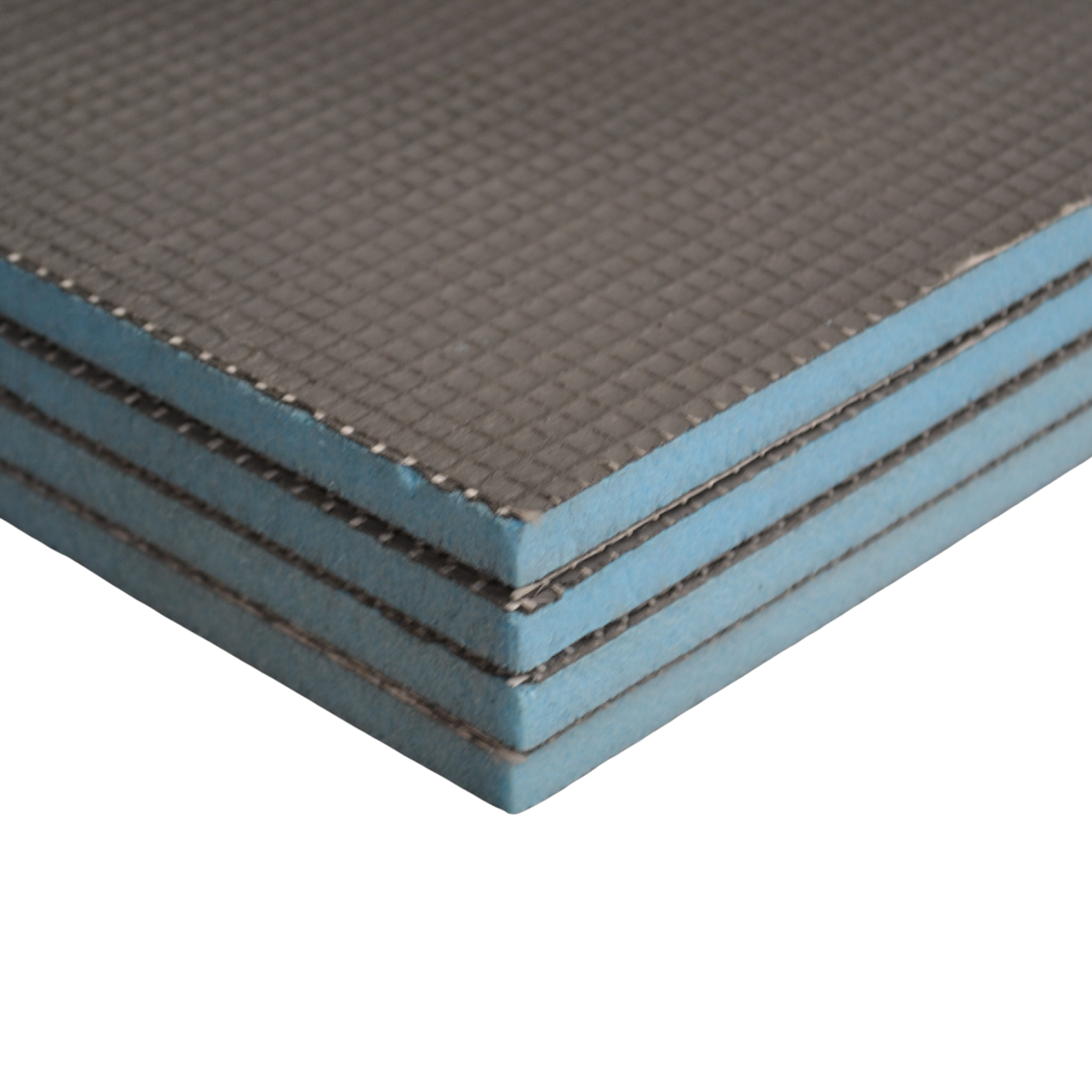

TECCA Tile Backer Boards provide a high-performance, cost-effective solution for preparing walls and floors for tiling. Designed to replace traditional materials such as plasterboard and plywood, these boards create a stable, waterproof, and insulated surface suitable for all types of tiling projects.
Lightweight, durable, and easy to cut, they can be installed over a wide range of substrates including concrete, timber, masonry, brick, and metal. When all joints and corners are sealed with waterproof tape, the system forms a fully water-resistant surface ideal for showers, wet rooms, and other moisture-sensitive areas.
Enhanced thermal properties help improve underfloor heating efficiency by up to 50%, making these boards an excellent choice for both professional installers and DIY users.
Key Features

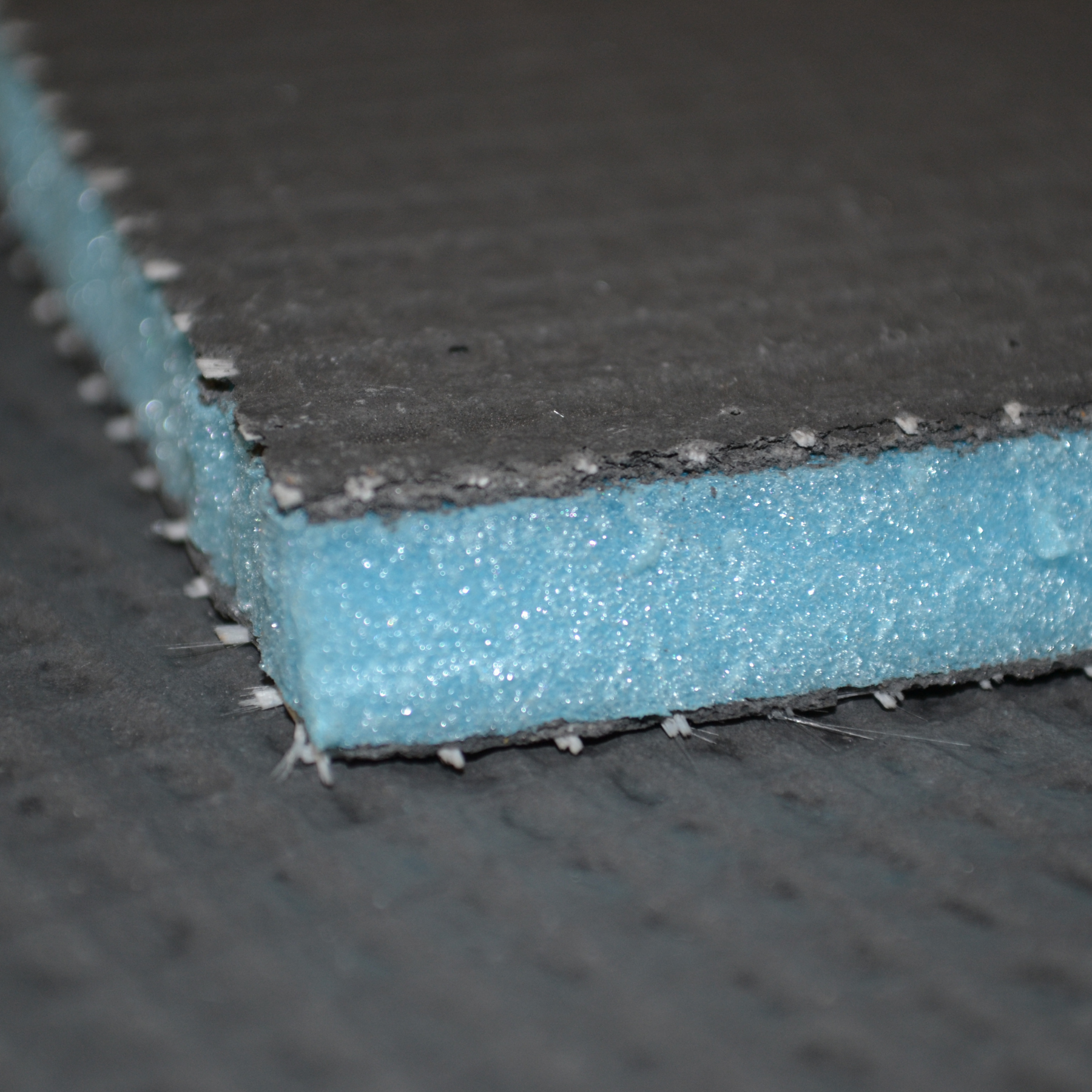

100% waterproof HCFC-free XPS foam core
No tanking required – simply tape joints and corners
Compatible with concrete, timber, brick, metal and more
Lightweight, rigid, and easy to cut with a knife or saw
Strong adhesion with tile adhesives
Vapour retardant and resistant to mould
Helps improve underfloor heating efficiency by up to 50%
Suitable for both wall and floor installations
Replaces plasterboard and plywood in wet environments
Ideal for bathrooms, wet rooms, and high-moisture areas
Applications
Underfloor heating systems
Concrete and timber floors
Shower tray and bath surrounds
Wet rooms and bathrooms
Vanity units and shelving
Pipe boxing
Attaching to laths, supports, and masonry surfaces
General substrate preparation before tiling
Technical Specifications
Specification
Details
XPS Foam Density
32 ± 0.02 kg/m³
Thermal Conductivity
0.033 W/(m·K)
Compressive Strength (10% deflection)
32 ± 0.02 kg/m³
Flexural Strength
2.66 MPa
Water Absorption (2-day Immersion)
< 1%
Capillary Water Absorption
Zero
Maximum Tile Loading
62 kg/m²
Nail Pull Resistance
261 N
Maximum Compressive Strength
4535 N
Board Size
60 × 120 cm
Recommended Fixings
Minimum 8 washers — 15 per board for best results
Installation Instructions
Mark 8–15 fixing points on each board.
Apply flexible tile adhesive at each point and press the board into place.
Once set, drill through the fixing points into the solid substrate.
Fix using screws and washers — tighten until just flush (do not overtighten).
Tape all board joints using glass fibre tape; use waterproof tape for wet areas.
