1.2m Tile Cutter
1.2m Tile Cutter

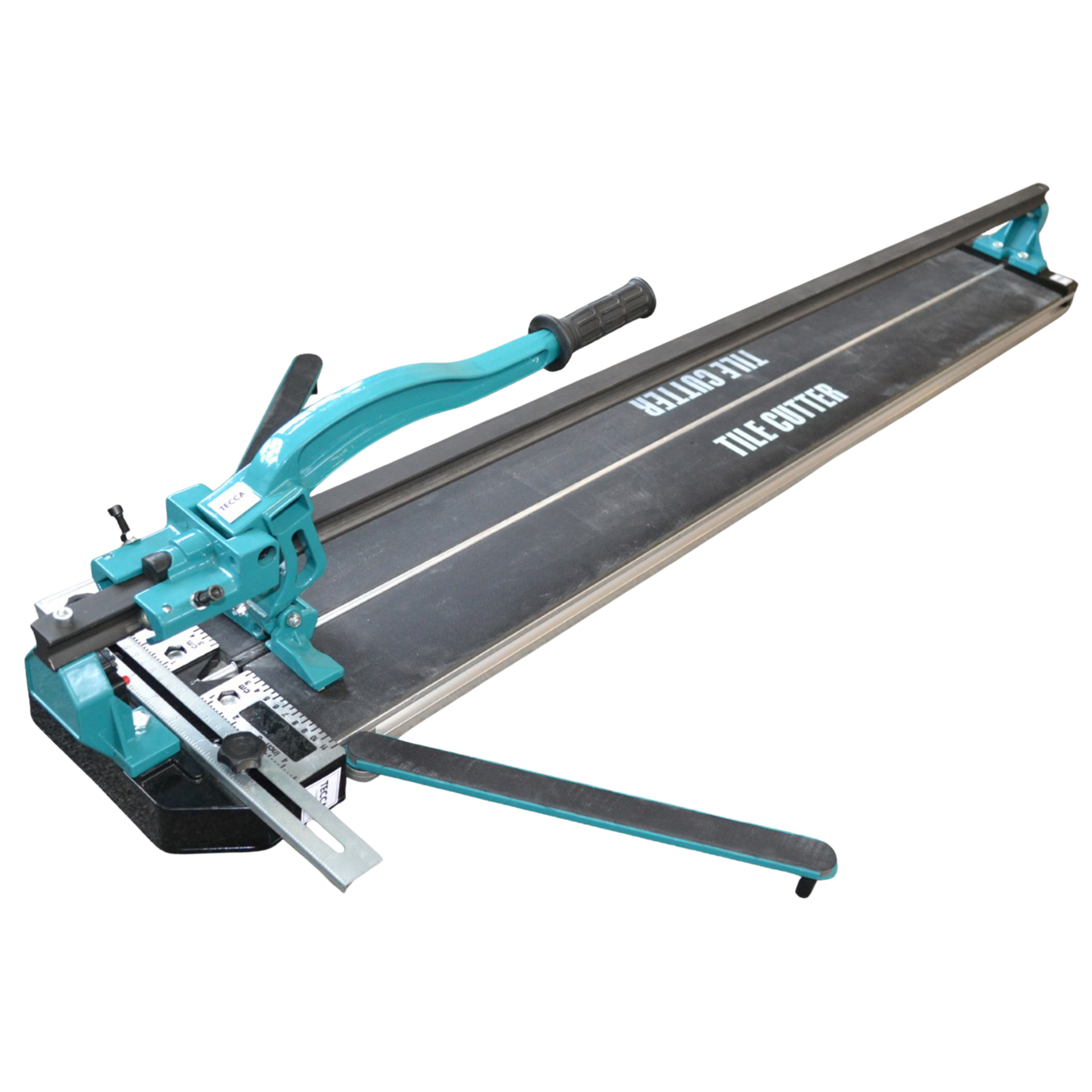

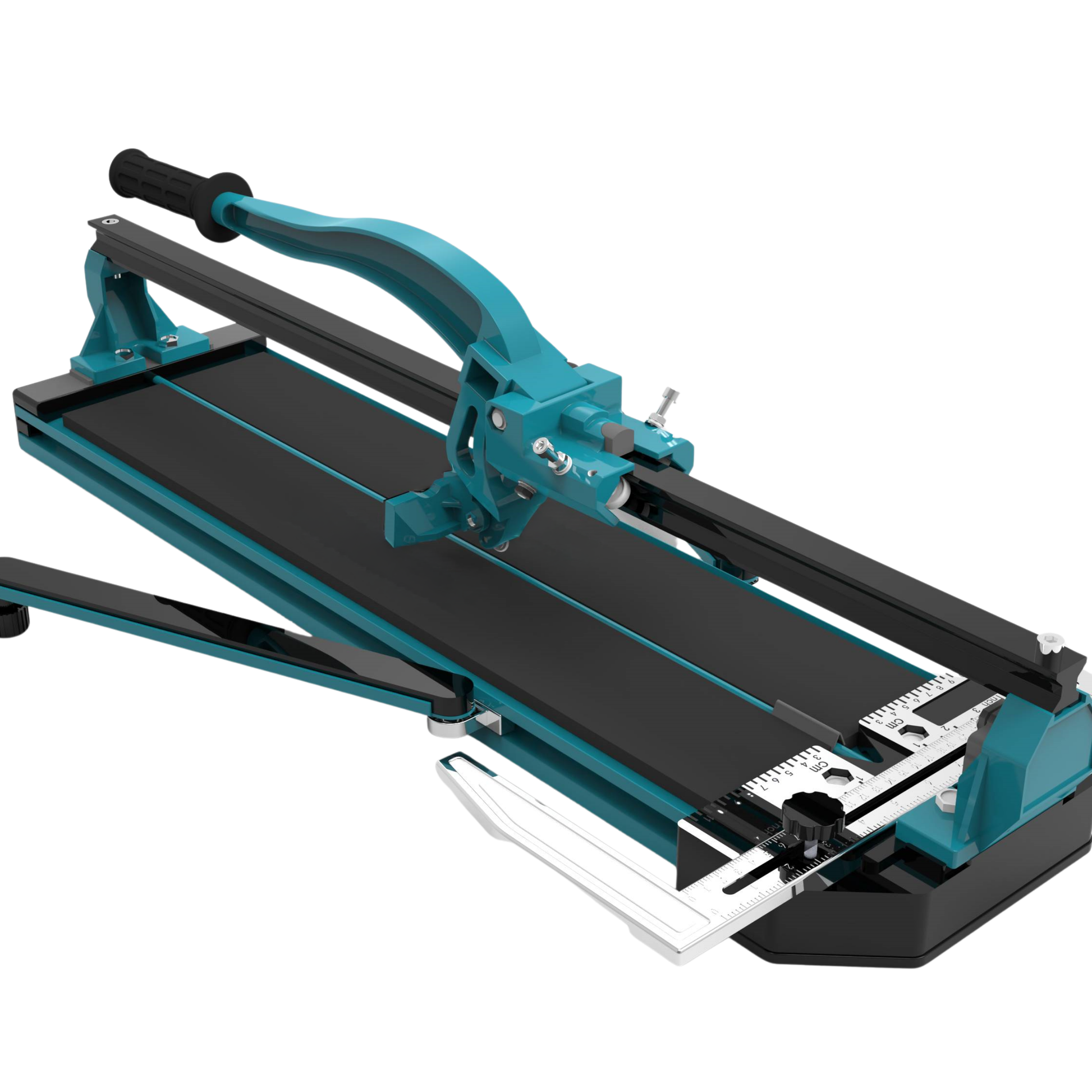

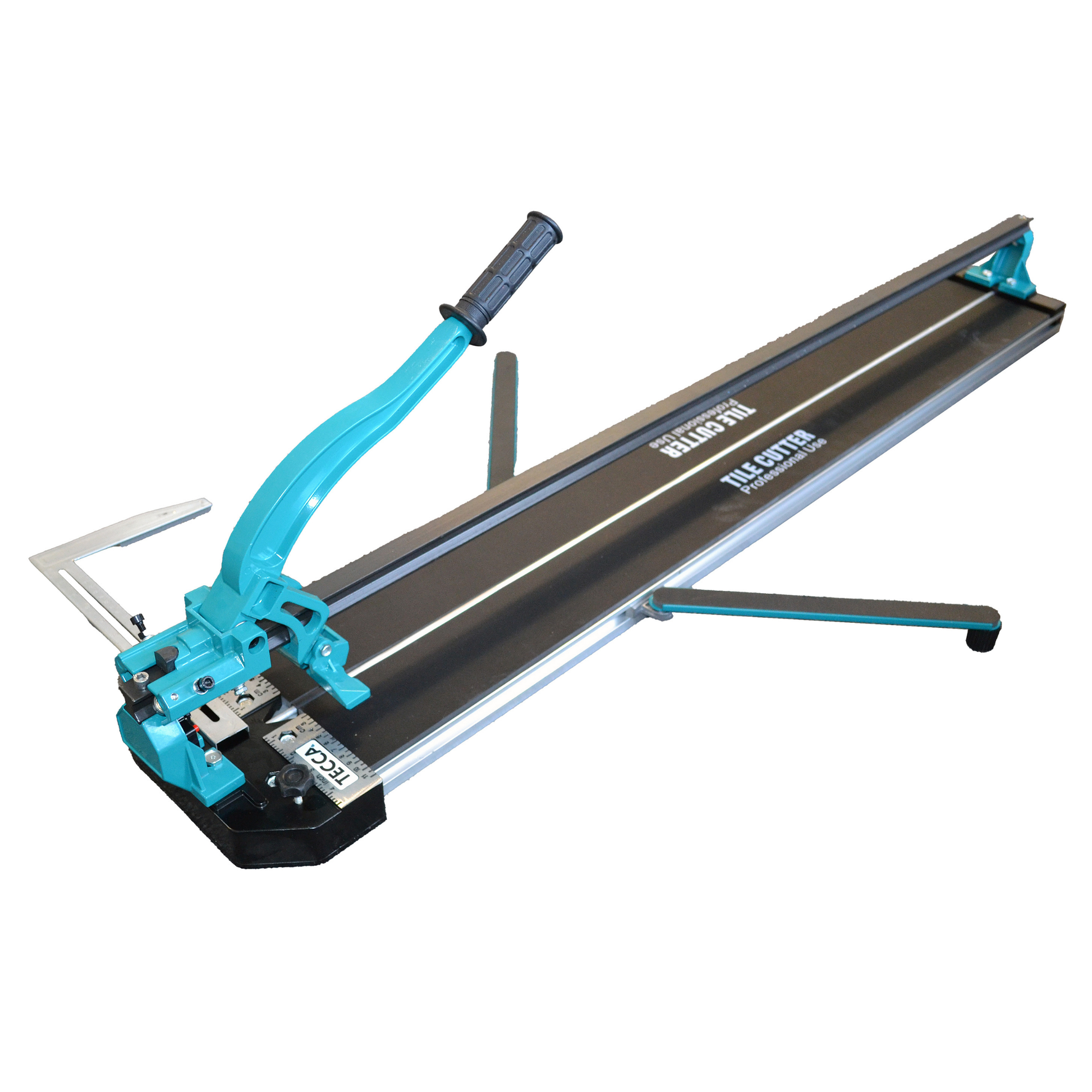

The 1.2m Manual Tile Cutter is a professional-grade, heavy-duty tool engineered for precision, reliability, and long-lasting performance. Designed for both residential and commercial tiling projects, it features a durable steel frame, dual chrome-plated guide rails, and a reinforced breaker system—providing consistently clean, accurate cuts on large-format porcelain and ceramic tiles.
Equipped with a high-precision tungsten carbide cutting wheel, the cutter scores smoothly across both glazed and unglazed tiles. The ergonomic handle and anti-slip rubber base ensure full control during scoring and snapping, while the foldable support arms provide extra stability when working with oversized tiles.
Compact yet powerful, this cutter is built for tradespeople who demand a durable, precise cutting solution capable of withstanding daily site use.
Key Features
- Cuts tiles up to 1200mm length / 16mm thickness
- Dual chrome-plated guide rails for smooth, accurate scoring

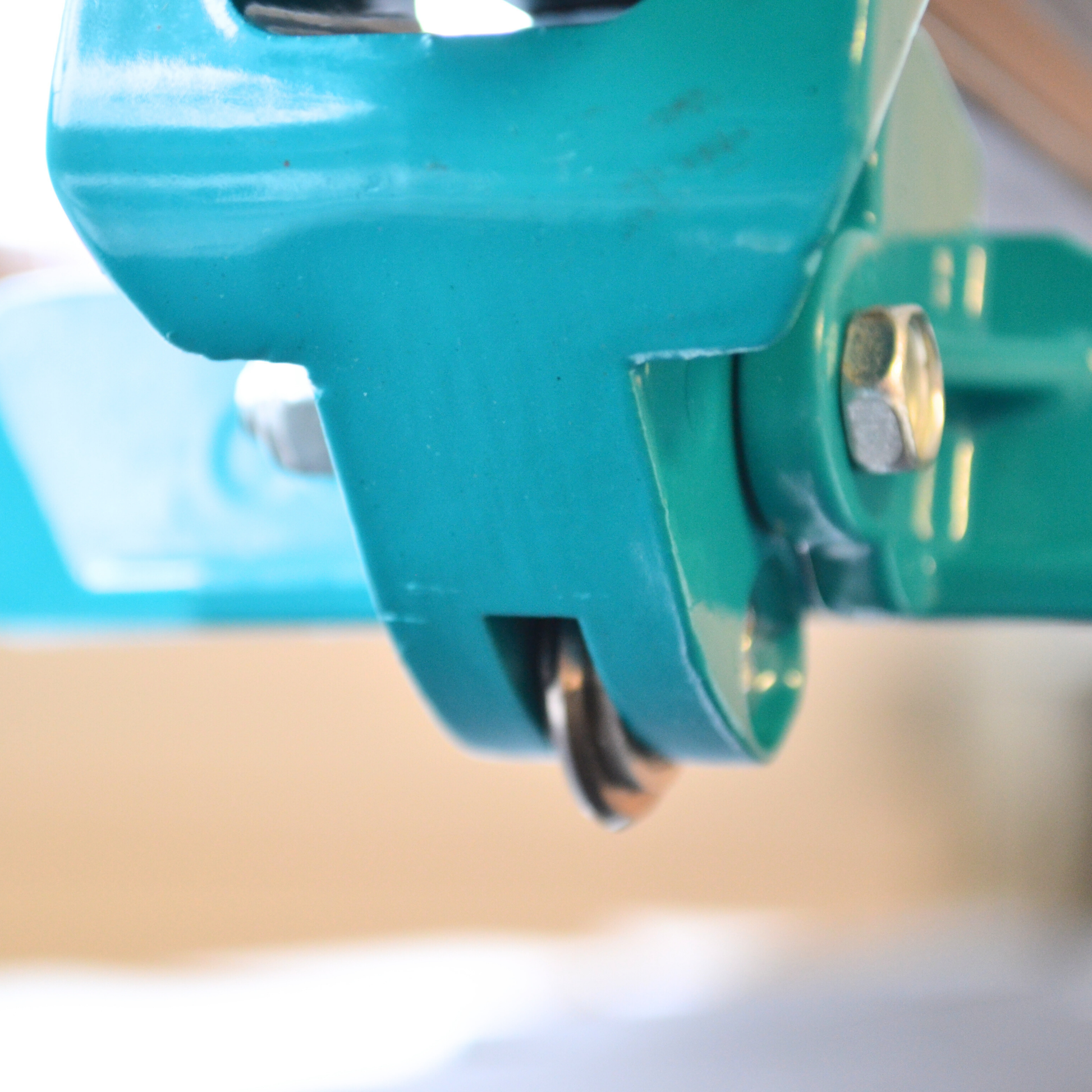

- High-precision tungsten carbide cutting wheel
- Reinforced breaker system delivering 800kg breaking force
- Anti-slip rubber base for stability during cutting

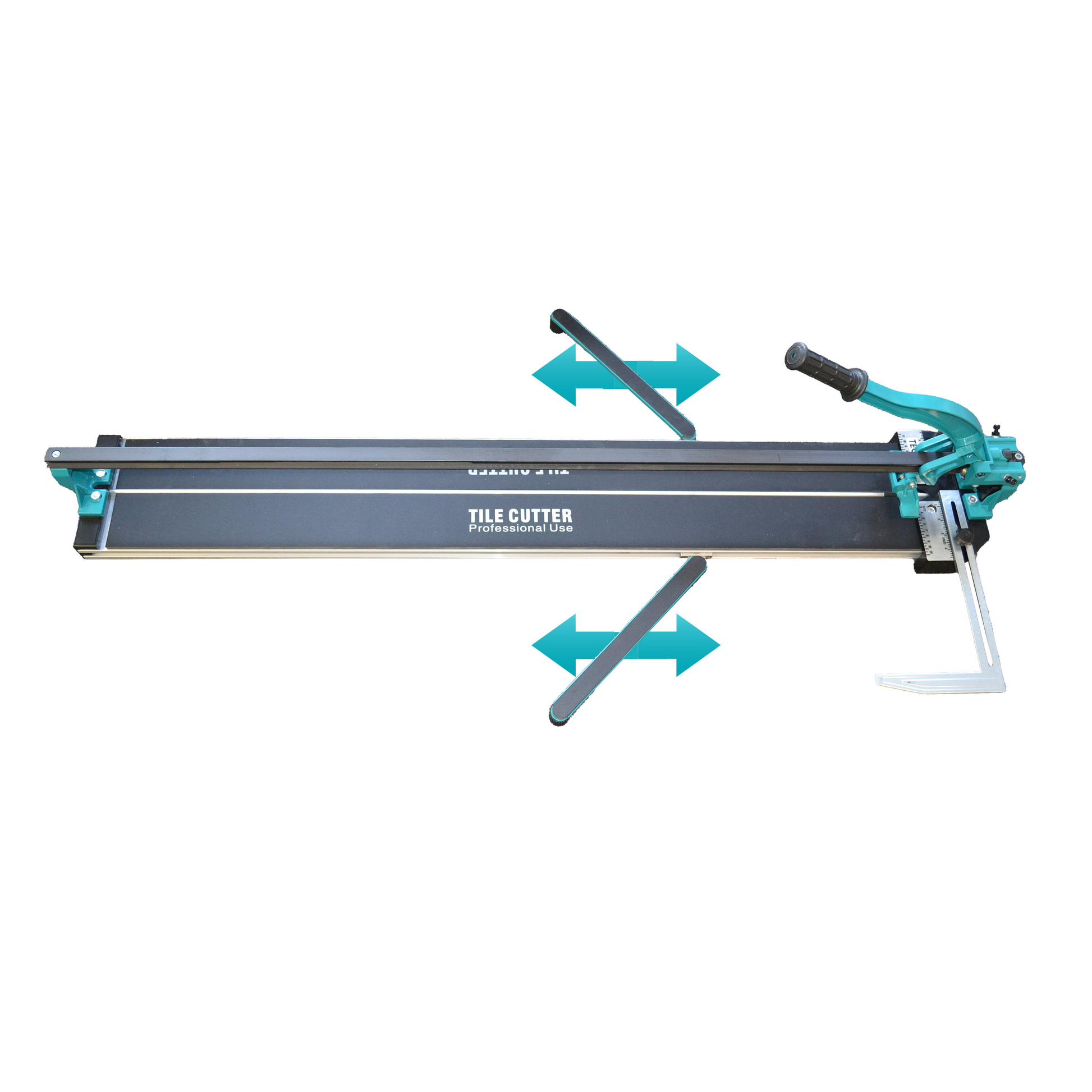

- Foldable support arms for large-format tiles
- Lightweight steel frame with carry handle for portability

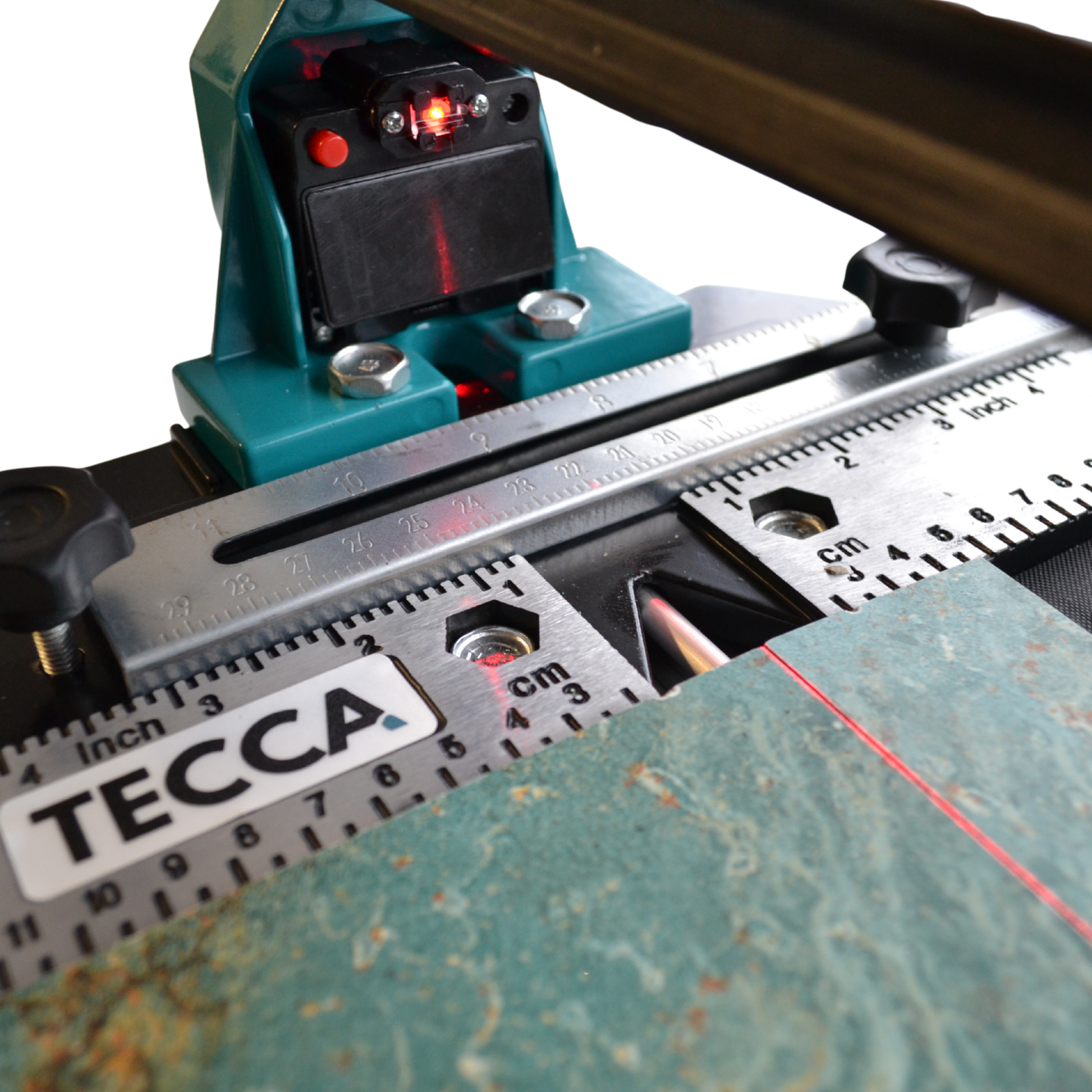

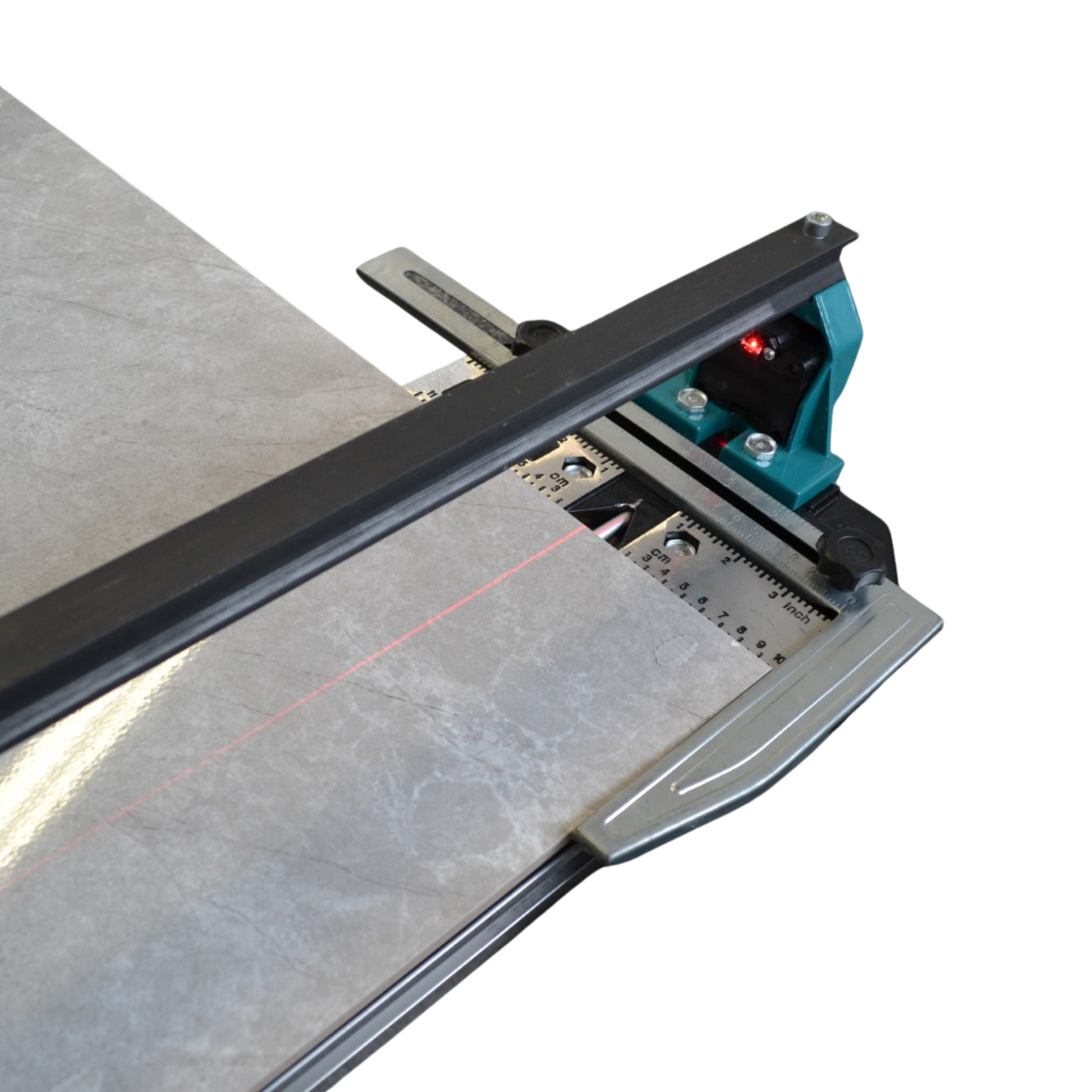

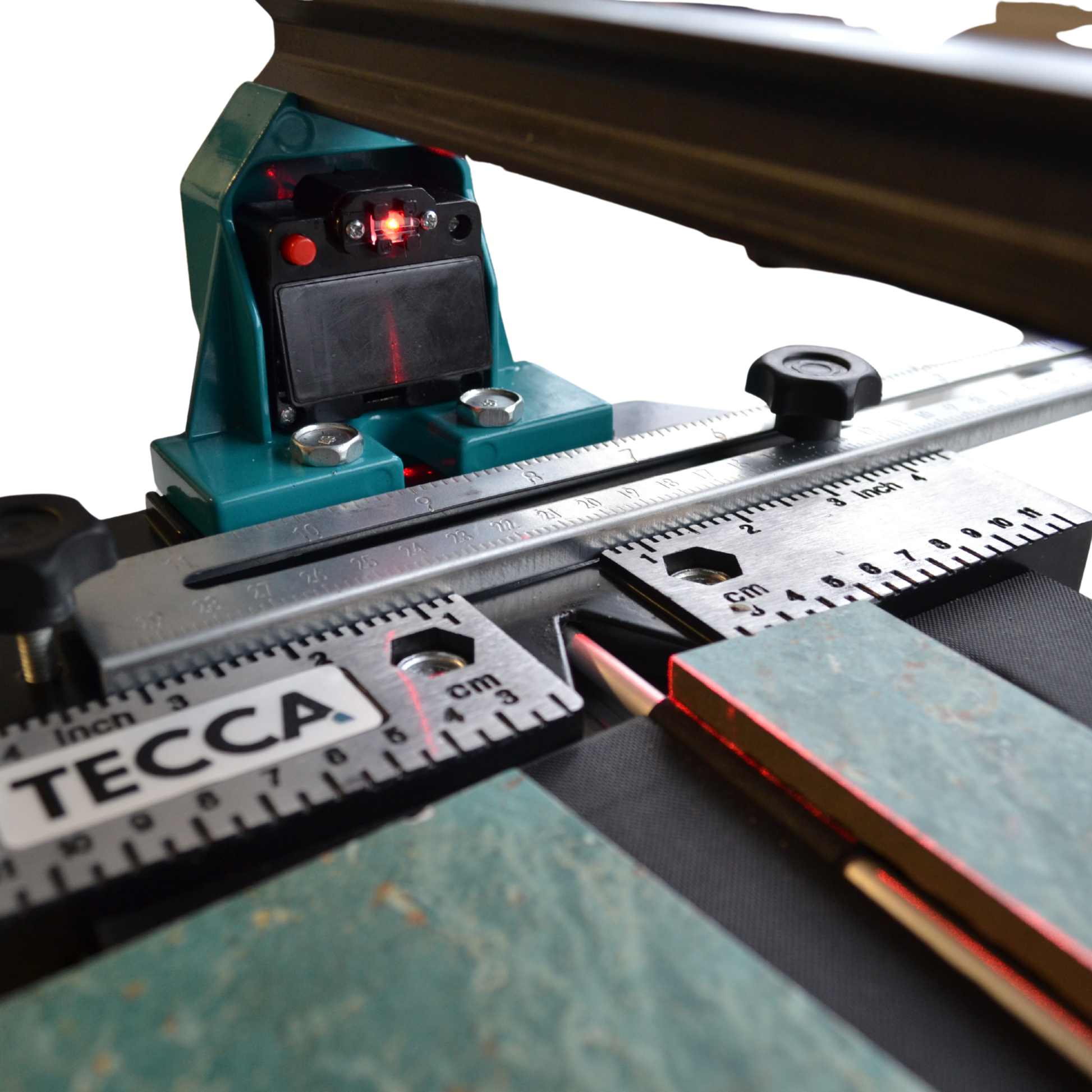

- Integrated laser guide for perfect cutting alignment
- Suitable for porcelain, ceramic, and glass tiles
Applications
- Cutting porcelain, ceramic, and glass tiles
- Large-format tiles up to 1200mm
- Bathrooms, kitchens, and commercial spaces
- On-site professional installations
- Residential wall and floor cutting
- High-traffic commercial flooring
- Renovation projects requiring precision
- Outdoor areas such as terraces and patios
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Cutting Length / Thickness | 1200mm / 16mm |
| Maximum Diagonal Cut | 850mm |
| Laser Guide | Built-in alignment laser (2 × AAA batteries) |
| Cutting Wheel | Tungsten carbide Ø22mm |

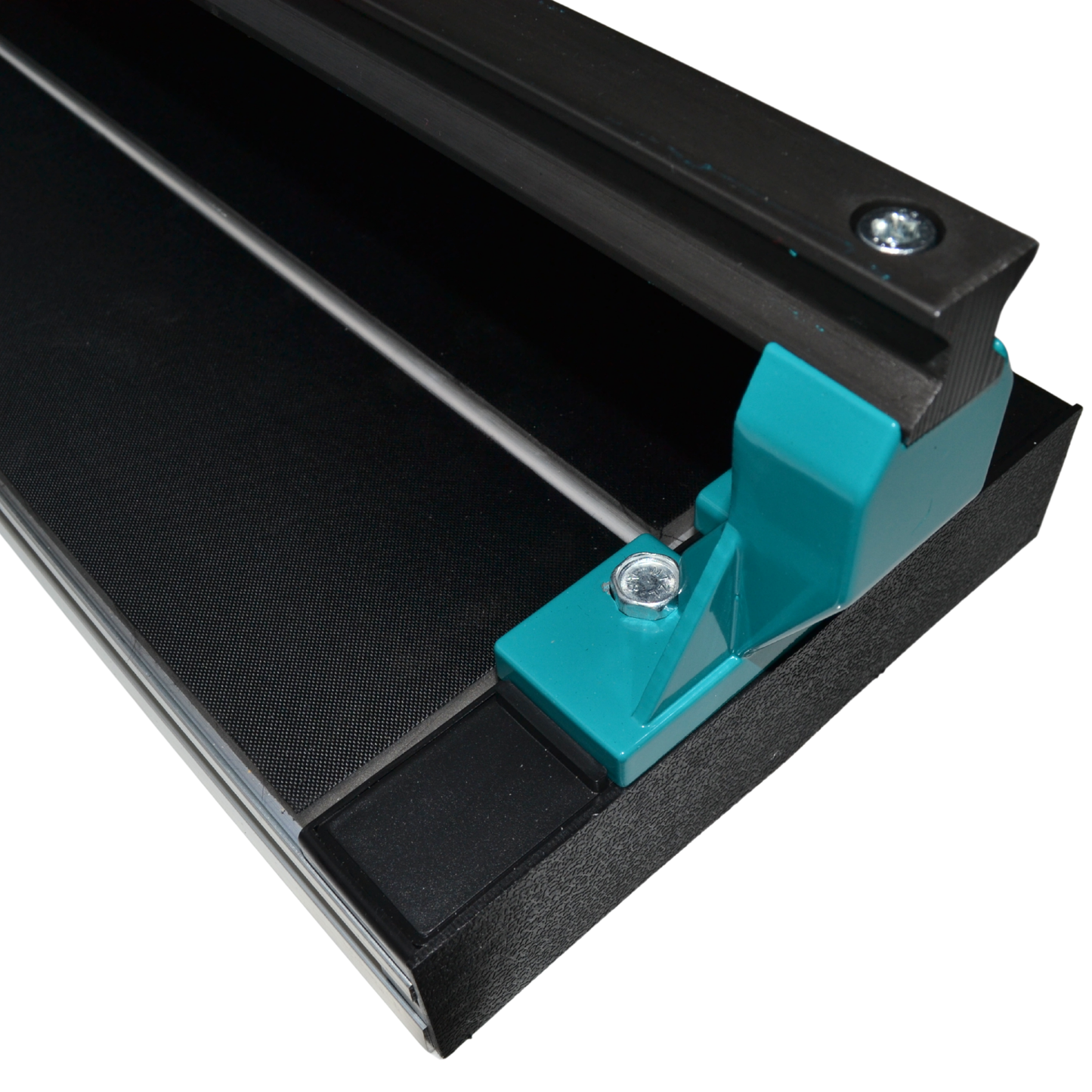

| Base Material | Heavy-duty steel with rubber mat |
| Guide Rails | Dual chrome-plated, anti-wear |
| Breaker System | Reinforced, 800kg breaking force |
| Handle Design | Ergonomic alloy handle |
| Net Weight | ~18kg |
| Certification | CE / RoHS compliant |
Installation Instructions
- Place the cutter on a stable, level surface.

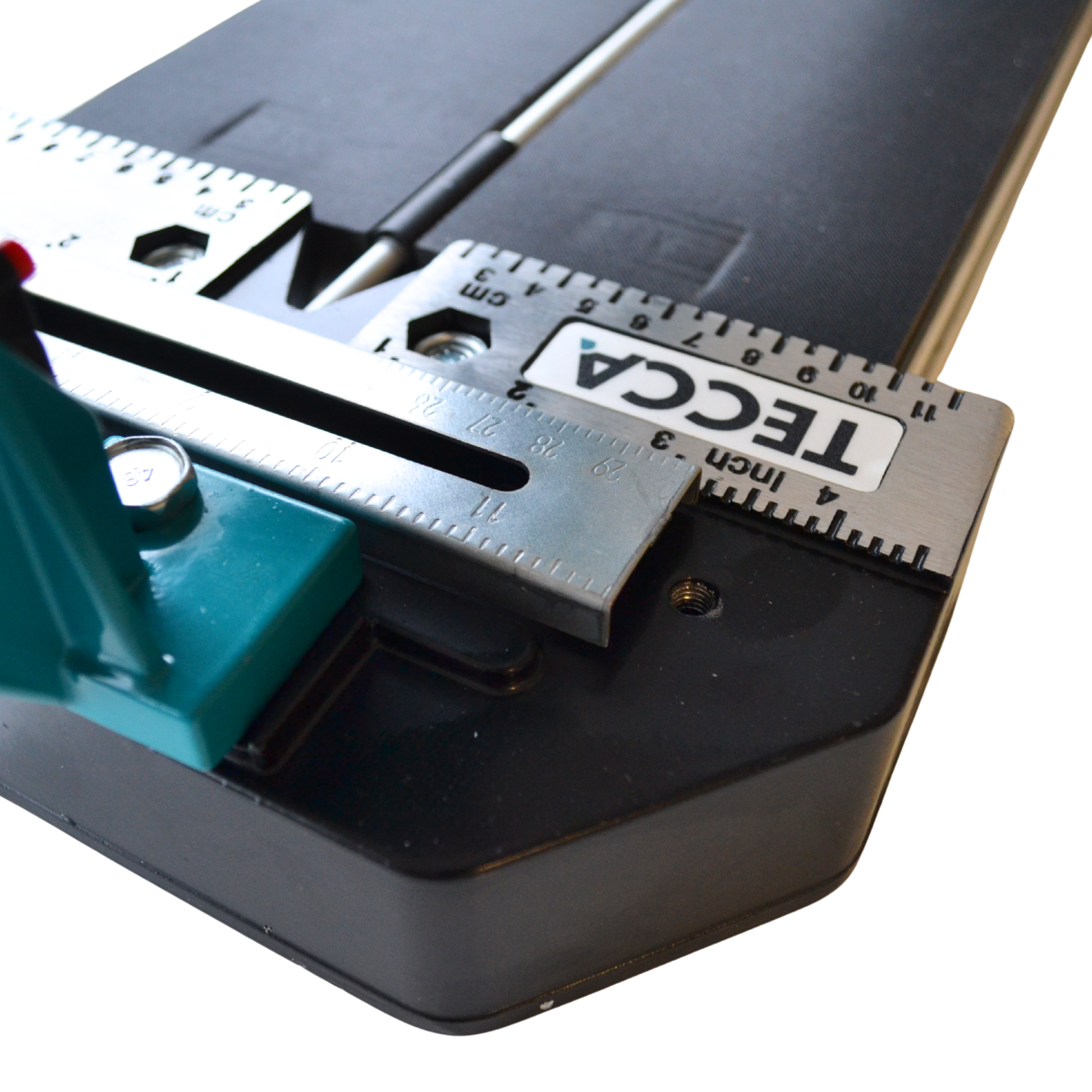

- Position the tile against the base fence and align using the measurement guide.
- Set the cutting wheel at the tile’s edge and score in one smooth, even pass.

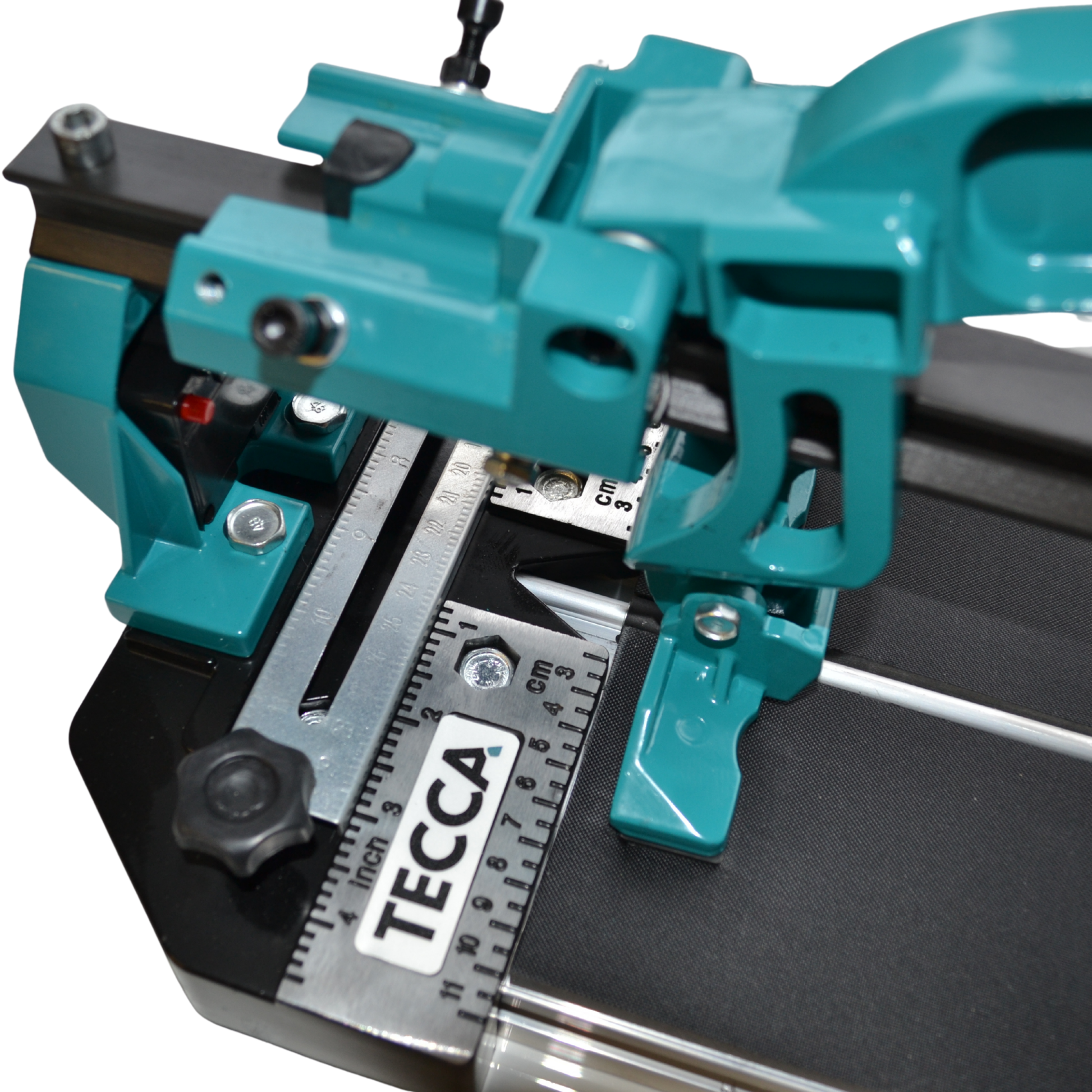

- Align the breaker foot over the scored line and apply pressure for a clean snap.
- Use the foldable support arms to stabilise large-format tiles during scoring.
- Replace or maintain the cutting wheel periodically to ensure optimal cutting performance.
